Europe

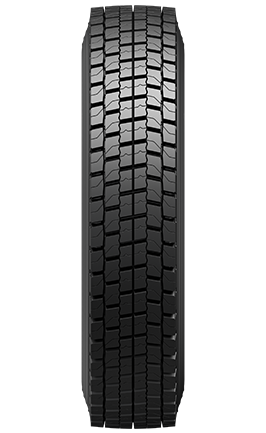

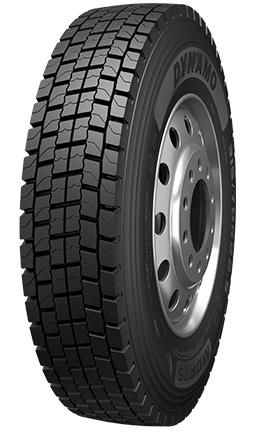

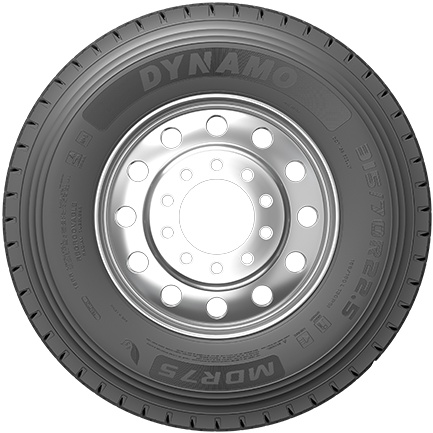

MDR75
Excellent traction
High wear resistance
Tread chunking resistance
| Plant | Size | L.I./S.R | P.R. | T.D. (mm) | RIM (Inch) | O.D. (mm) | S.W. (mm) | S.L.R. (Inch) | Single (kg) | Dual (kg) | A.P. (kPa) |
| CN | 11R22.5 | 146/143K | 16 | 19.5 | 8.25 | 1050 | 279 | 19.33 | 3000 | 2725 | 830 |
| CN | 11R22.5 | 148/145L | 16 | 19.5 | 8.25 | 1050 | 279 | 19.33 | 3150 | 2900 | 850 |
| CN | 205/75R17.5 | 124/122L | 14 | 15.5 | 6.00 | 753 | 205 | 13.9 | 1600 | 1500 | 750 |
| CN | 215/75R17.5 | 135/133L | 16 | 15 | 6.00 | 767 | 211 | 14.17 | 2180 | 2060 | 860 |
| CN | 235/75R17.5 | 143/141L | 18 | 15 | 6.75 | 797 | 233 | 14.69 | 2725 | 2575 | 860 |
| CN | 245/70R19.5 | 144/142J | 18 | 16 | 7.50 | 839 | 248 | 15.39 | 2800 | 2650 | 900 |
| VN | 295/80R22.5 | 152/148M | 16 | 21.5 | 9.00 | 1044 | 298 | 19.17 | 3550 | 3150 | 850 |
| VN | 295/80R22.5 | 152/149M | 18 | 21.5 | 9.00 | 1044 | 298 | 19.17 | 3550 | 3250 | 900 |
| CN/VN | 315/70R22.5 | 154/150L | 18 | 20 | 9.00 | 1014 | 312 | 18.46 | 3750 | 3350 | 900 |
| CN/VN | 315/70R22.5 | 156/150L | 18 | 20 | 9.00 | 1014 | 312 | 18.46 | 4000 | 3350 | 900 |
| CN/VN | 315/80R22.5 | 156/153L | 20 | 22.5 | 9.00 | 1076 | 312 | 19.69 | 4000 | 3650 | 850 |
